[공공데이터] 2-1. URL로 불러와 파싱 (XML-기상청, 버스노선)

https://intheham.tistory.com/78

[공공데이터] 1. 다운받은 파일 파싱 (csv, json, xml)







commands.properties

/weather/load.do=handler.WeatherRssHandler
/bus/getInfoByRouteID.do=handler.BusHandler
/bus/getListByName.do=handler.BusIdHandler

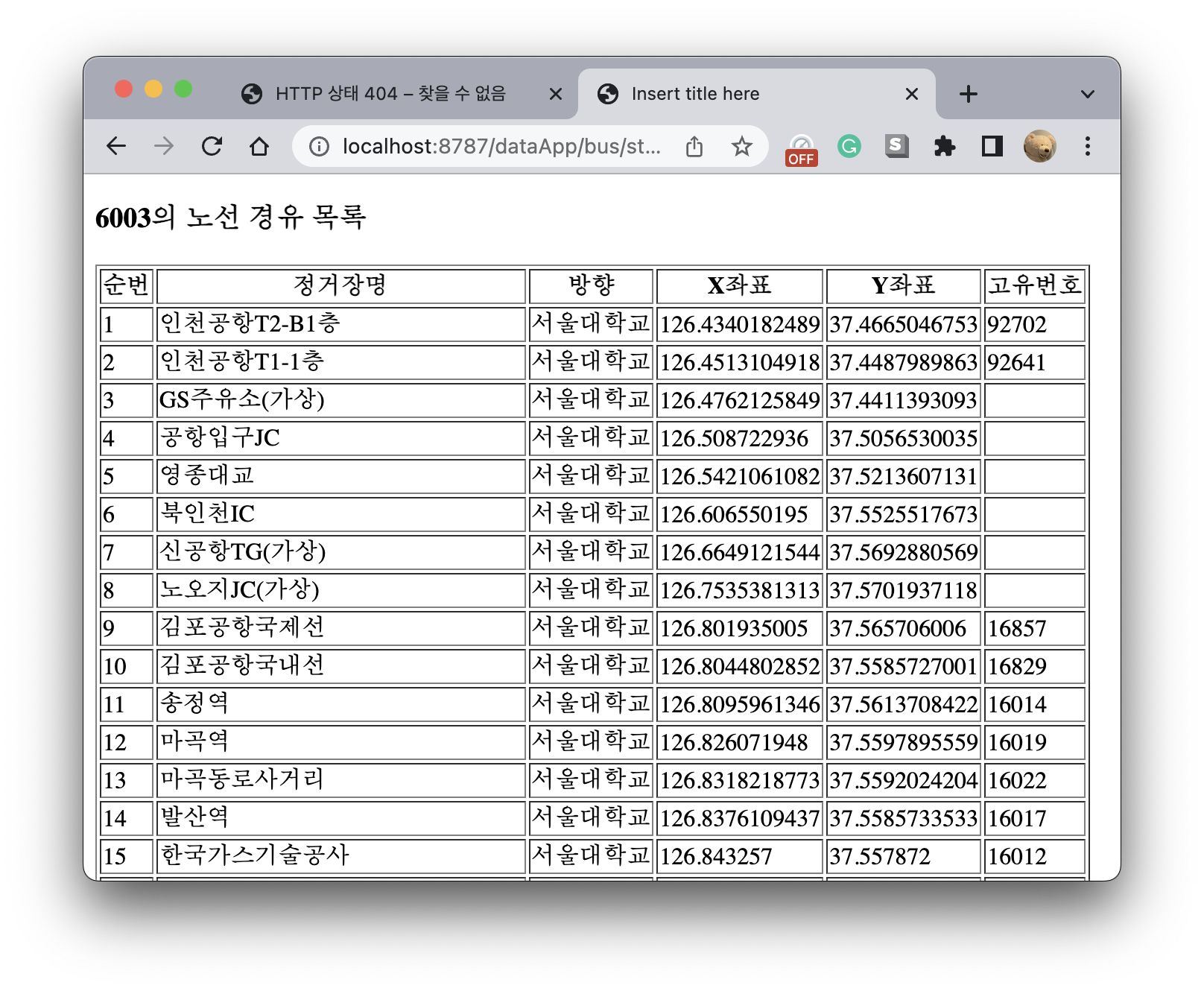

/bus/stationlist.do=handler.BusStationHandler

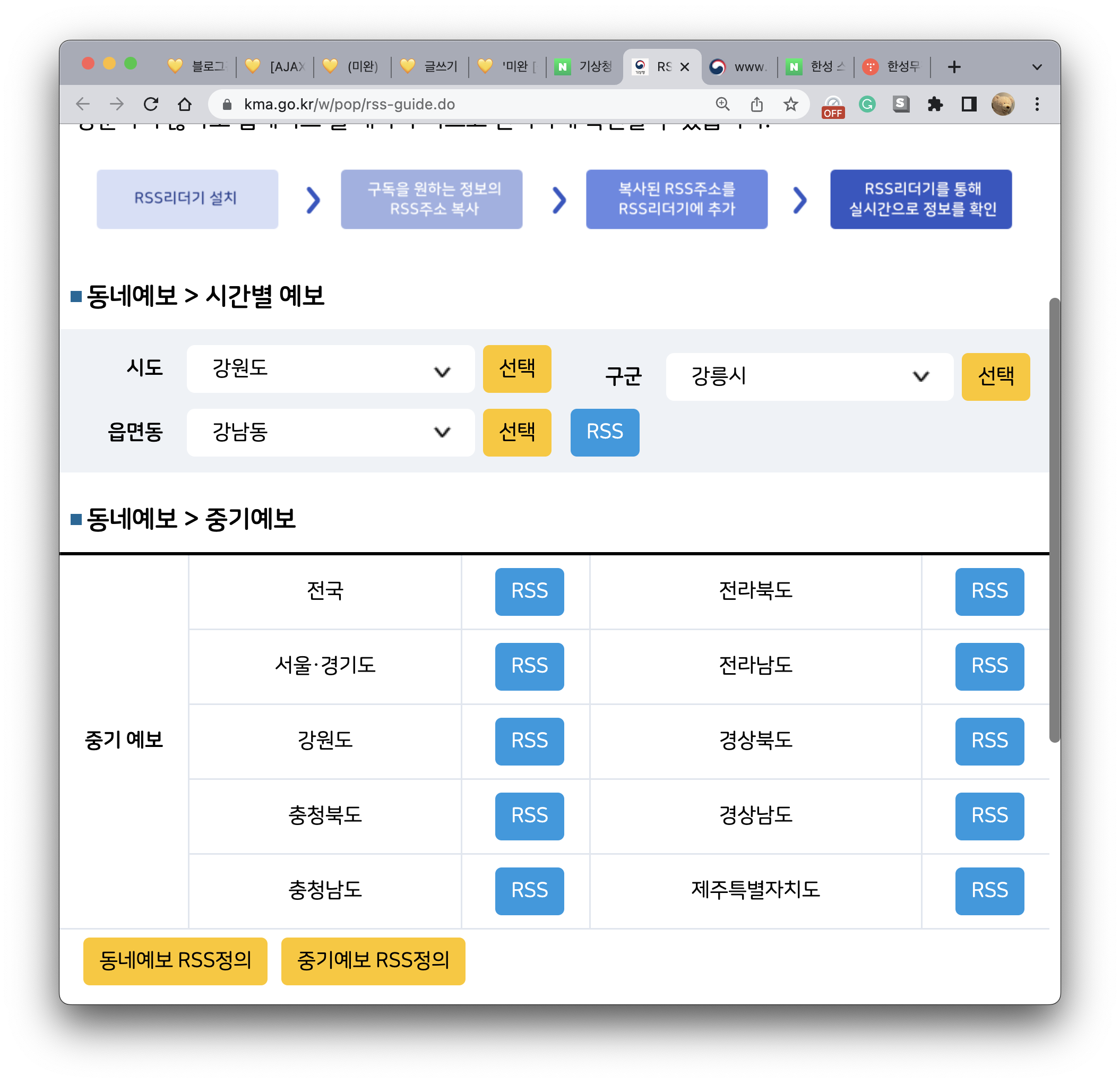

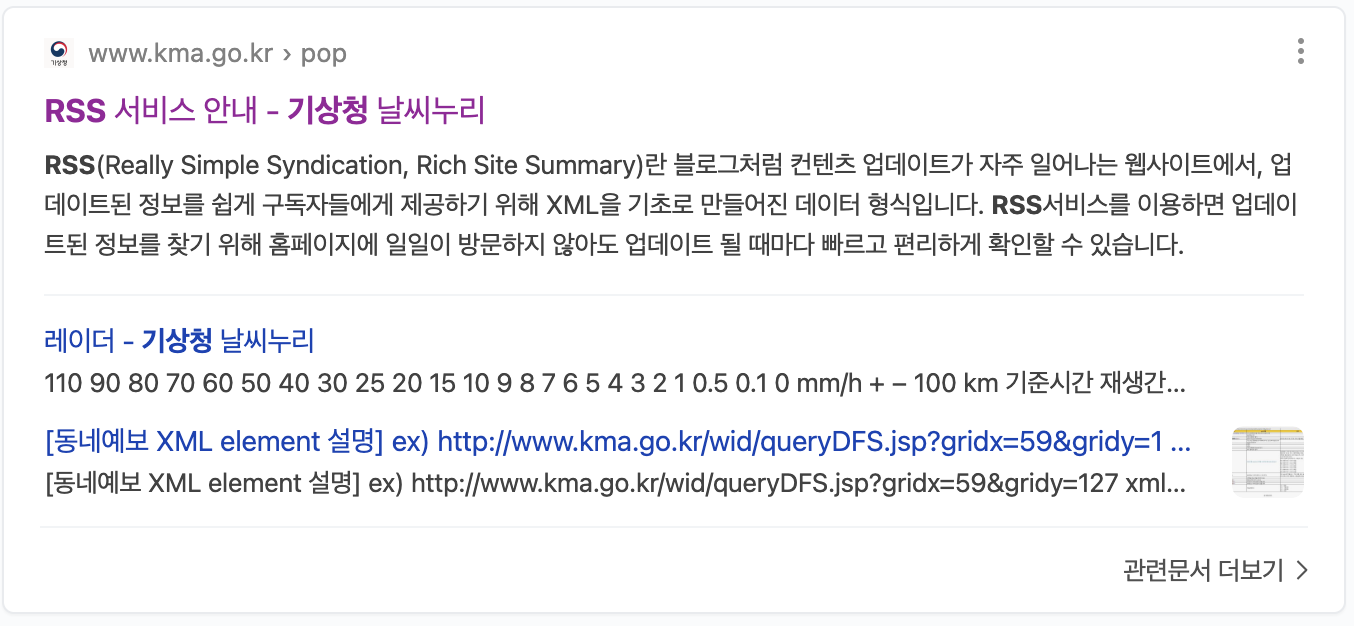

1. 기상청 RSS

<a href="${pageContext.request.contextPath}/weather/load.do">기상철 날씨 데이터 확인</a>

public class WeatherVo {
	private String city;
	private String dateTime;
	private String info;
	private String tmn; // 최저 온도
	private String tmx; // 최고 온도
	private String rnst; // 비 올 확률
}

package handler;

import java.io.IOException;
import java.net.MalformedURLException;
import java.net.URL;
import java.net.URLConnection;
import java.util.ArrayList;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;

import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;

import xml.WeatherVo;

public class WeatherRssHandler implements Handler {

	@Override
	public String process(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub

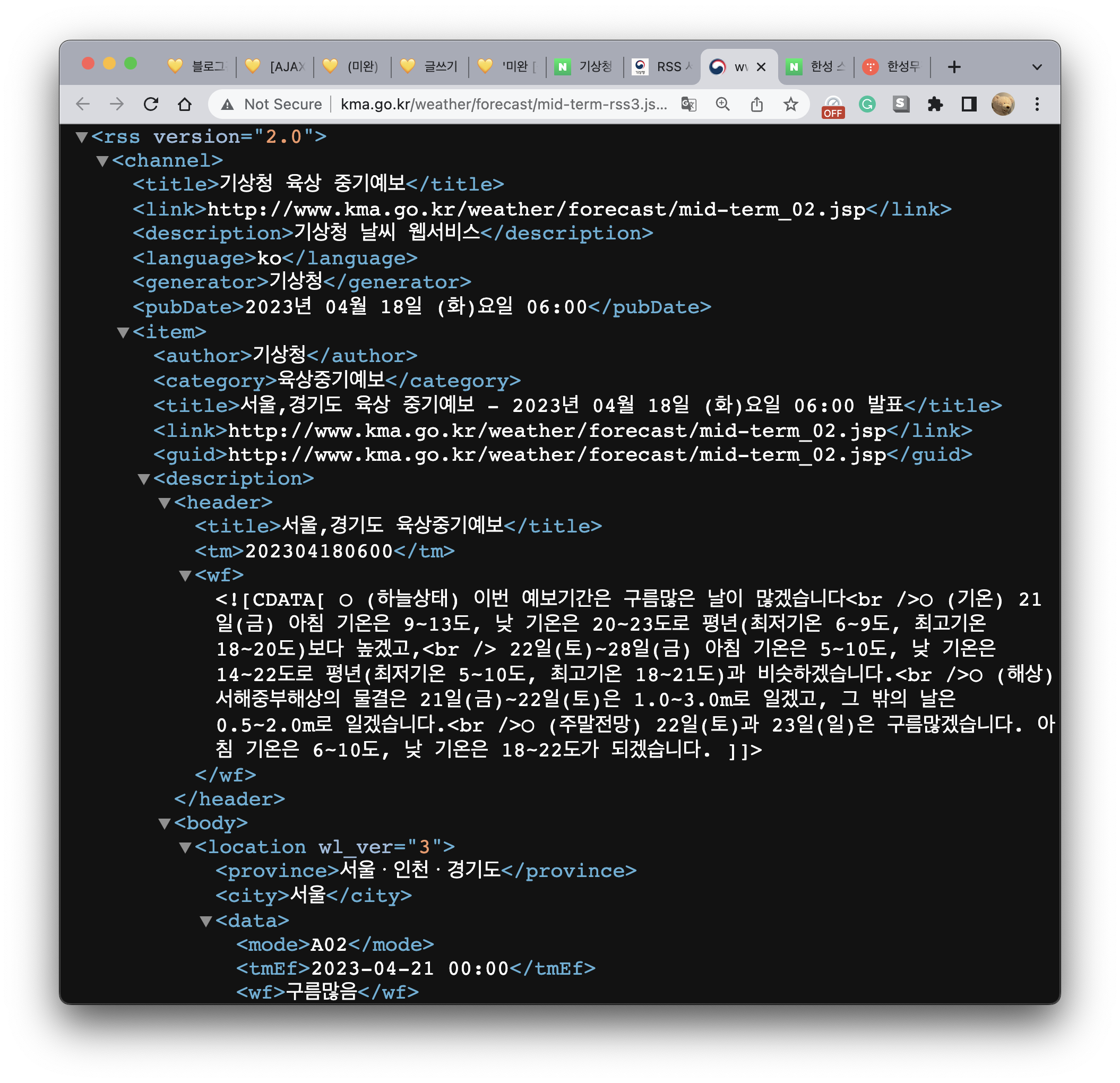

		String urlstr = "http://www.kma.go.kr/weather/forecast/mid-term-rss3.jsp?stnId=109";
		try {
			URL url = new URL(urlstr);
			URLConnection conn = url.openConnection(); // 네트워크 연결
//			// InputStream : 바이트를 읽어옴
//			// InputStreamReader : 바이트를 문자로 변환
//			// BufferedReader : 속도 업
//			BufferedReader br = new BufferedReader(new InputStreamReader(conn.getInputStream(), "utf-8")); // .getInputStream : url에 연결된 자원을 읽을 읽기 스트림을 반환
//			StringBuilder sb = new StringBuilder();
//			String str = "";
//			while((str = br.readLine()) != null) {
//				sb.append(str+"\n");
//			}
//			str = sb.toString();
//			System.out.println(str);
//			br.close();

			DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
			// DocumentBuilder 객체 생성
			DocumentBuilder builder = factory.newDocumentBuilder();
			// xml 파싱
			Document doc = builder.parse(conn.getInputStream());
			Element root = doc.getDocumentElement(); // root요소 추출
			String author = root.getElementsByTagName("author").item(0).getTextContent();
			String category = root.getElementsByTagName("category").item(0).getTextContent();
			String title = root.getElementsByTagName("title").item(1).getTextContent(); // 두번째 <title> 태그를 쓰고 싶어서.

//			System.out.println("author: " + author);
//			System.out.println("category: " + category);
//			System.out.println("title: " + title);

			ArrayList<WeatherVo>list = new ArrayList<>();
			NodeList locs = root.getElementsByTagName("location");
			for (int i=0; i<locs.getLength(); i++) {
				Element loc = (Element) locs.item(i);
				String city = loc.getElementsByTagName("city").item(0).getTextContent();
				NodeList datas = loc.getElementsByTagName("data");
				for(int j=0; j<datas.getLength(); j++) {
					Element data = (Element) datas.item(j);
					String dateTime = data.getElementsByTagName("tmEf").item(0).getTextContent();
					String info = data.getElementsByTagName("wf").item(0).getTextContent();
					String tmn = data.getElementsByTagName("tmn").item(0).getTextContent();
					String tmx = data.getElementsByTagName("tmx").item(0).getTextContent();
					String rnst = data.getElementsByTagName("rnSt").item(0).getTextContent();
					list.add(new WeatherVo(city, dateTime, info, tmn, tmx, rnst));
				}
			}
			request.setAttribute("list", list);
			request.setAttribute("author", author);
			request.setAttribute("category", category);
			request.setAttribute("title", title);
			System.out.println(list);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ParserConfigurationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (SAXException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

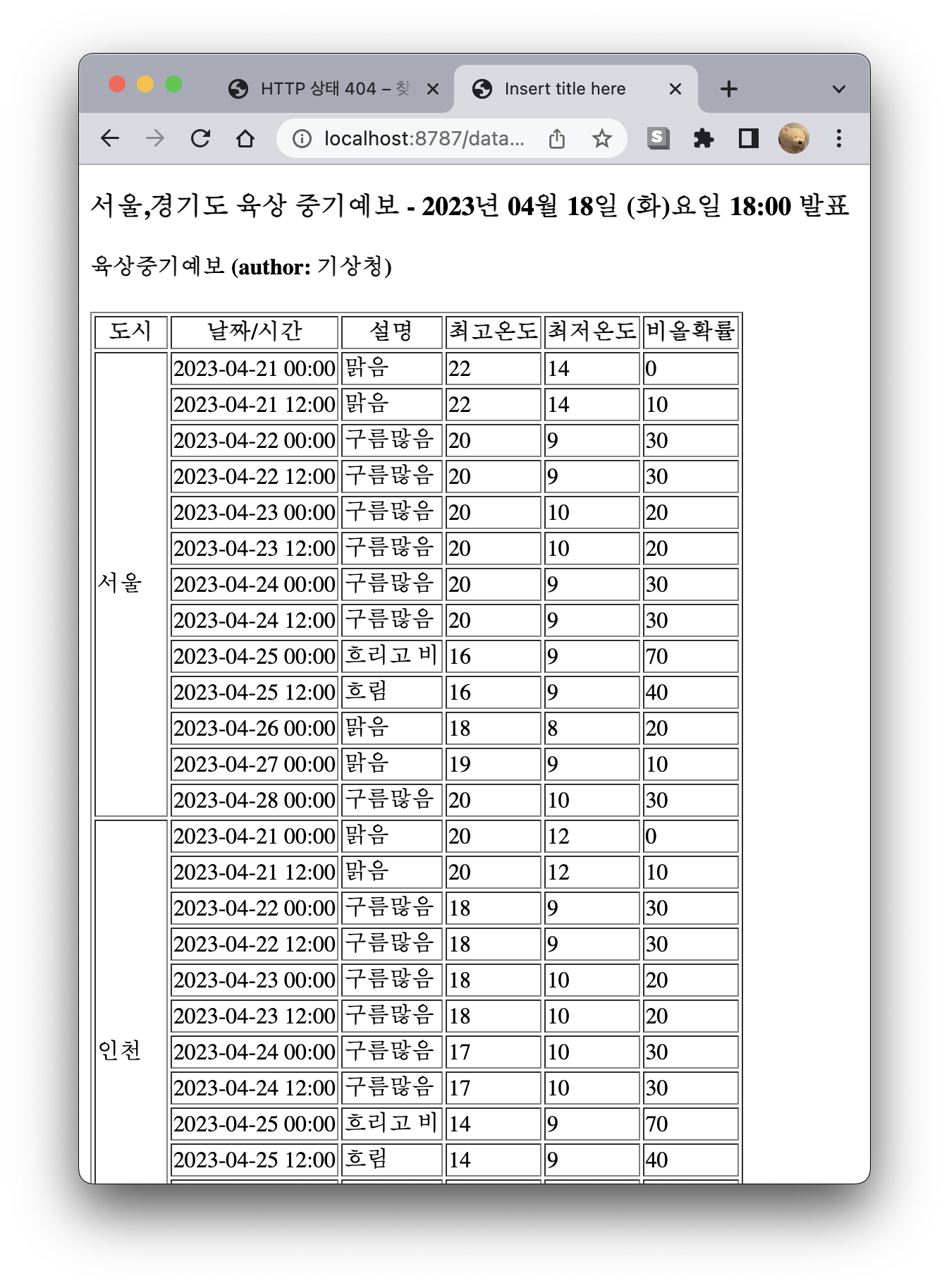

		return "/xml/weatherList.jsp";
	}

}





---



2-1. Bus id 검색



서울특별시_노선정보조회_서비스_활용가이드_20190110.docx

0.34MB

노선 정보 확인
 1) api 키 받아서 복사해둔다
- 발급받는 데에 보통 1시간정도 걸리니 미리 받아두기.

2)노선ID로 버스 정보를 획득

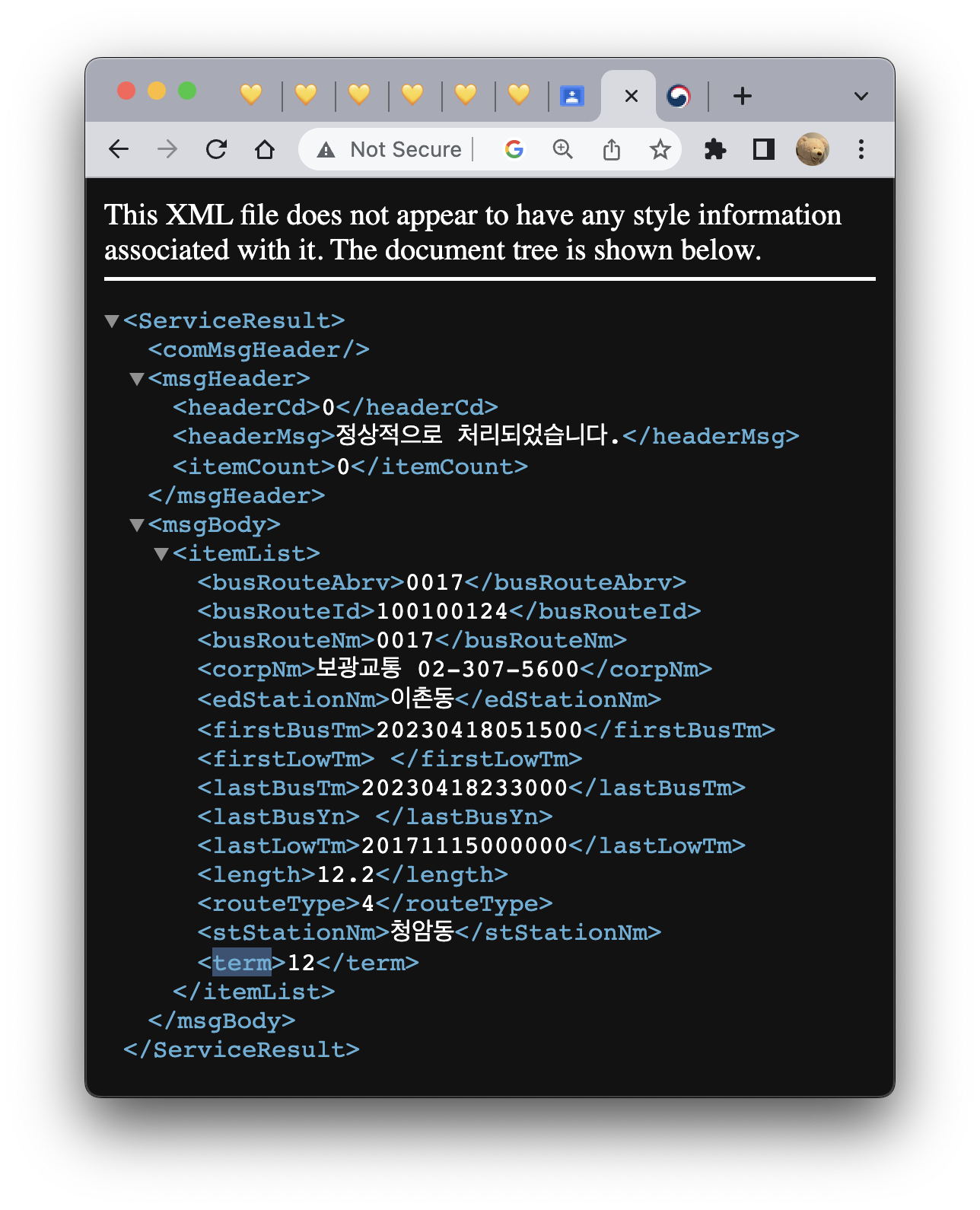

url = ' http://ws.bus.go.kr/api/rest/busRouteInfo/getRouteInfo?ServiceKey=복사해둔api키&busRouteId=버스노선ID'





<form action="${pageContext.request.contextPath}/bus/getInfoByRouteID.do" method="POST">
버스노선id: <input type="text" name="busid">
<input type="submit" value="검색">
</form>

package handler;

import java.io.IOException;
import java.net.MalformedURLException;
import java.net.URL;
import java.net.URLConnection;
import java.util.ArrayList;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;

import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;

import xml.WeatherVo;

// 버스 노선 아이디를 입력하면 정보를 주는!
public class BusHandler implements Handler {

	@Override
	public String process(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub

		String busid = request.getParameter("busid");
		String urlstr = "http://ws.bus.go.kr/api/rest/busRouteInfo/getRouteInfo?ServiceKey=복사해둔API키&busRouteId="
				+ busid;
		URL url;
		try {
			url = new URL(urlstr);
			URLConnection conn = url.openConnection(); // 네트워크 연결
			DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
			// DocumentBuilder 객체 생성
			DocumentBuilder builder = factory.newDocumentBuilder();
			// xml 파싱
			Document doc = builder.parse(conn.getInputStream());

			Element root = doc.getDocumentElement(); // root요소 추출
			String headercode = root.getElementsByTagName("headerCd").item(0).getTextContent();
			if (!headercode.equals("0")) { // "0"이 아니면 오류. "0"이 정상운행임
				String errormsg = root.getElementsByTagName("headerMsg").item(0).getTextContent();
				response.setContentType("text/html; charset=UTF-8");
				response.getWriter().append(errormsg);
				return null;
			}
			// getElementsByTagName()은 배열을 반환. 불러오는 값이 하나면 무조건 0번방.
            // getTextContent() : 태그 사이 값 반환.
			String busRouteNm = root.getElementsByTagName("busRouteNm").item(0).getTextContent();
			String corpNm = root.getElementsByTagName("corpNm").item(0).getTextContent();
			String edStationNm = root.getElementsByTagName("edStationNm").item(0).getTextContent();
			String stStationNm = root.getElementsByTagName("stStationNm").item(0).getTextContent();
			String firstBusTm = root.getElementsByTagName("firstBusTm").item(0).getTextContent();
			String lastBusTm = root.getElementsByTagName("lastBusTm").item(0).getTextContent();
			String term = root.getElementsByTagName("term").item(0).getTextContent();

			request.setAttribute("busRouteNm", busRouteNm);
			request.setAttribute("corpNm", corpNm);
			request.setAttribute("edStationNm", edStationNm);
			request.setAttribute("stStationNm", stStationNm);
			request.setAttribute("firstBusTm", firstBusTm);
			request.setAttribute("lastBusTm", lastBusTm);
			request.setAttribute("term", term);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ParserConfigurationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (SAXException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

		return "/bus/busList.jsp";
	}

}

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>

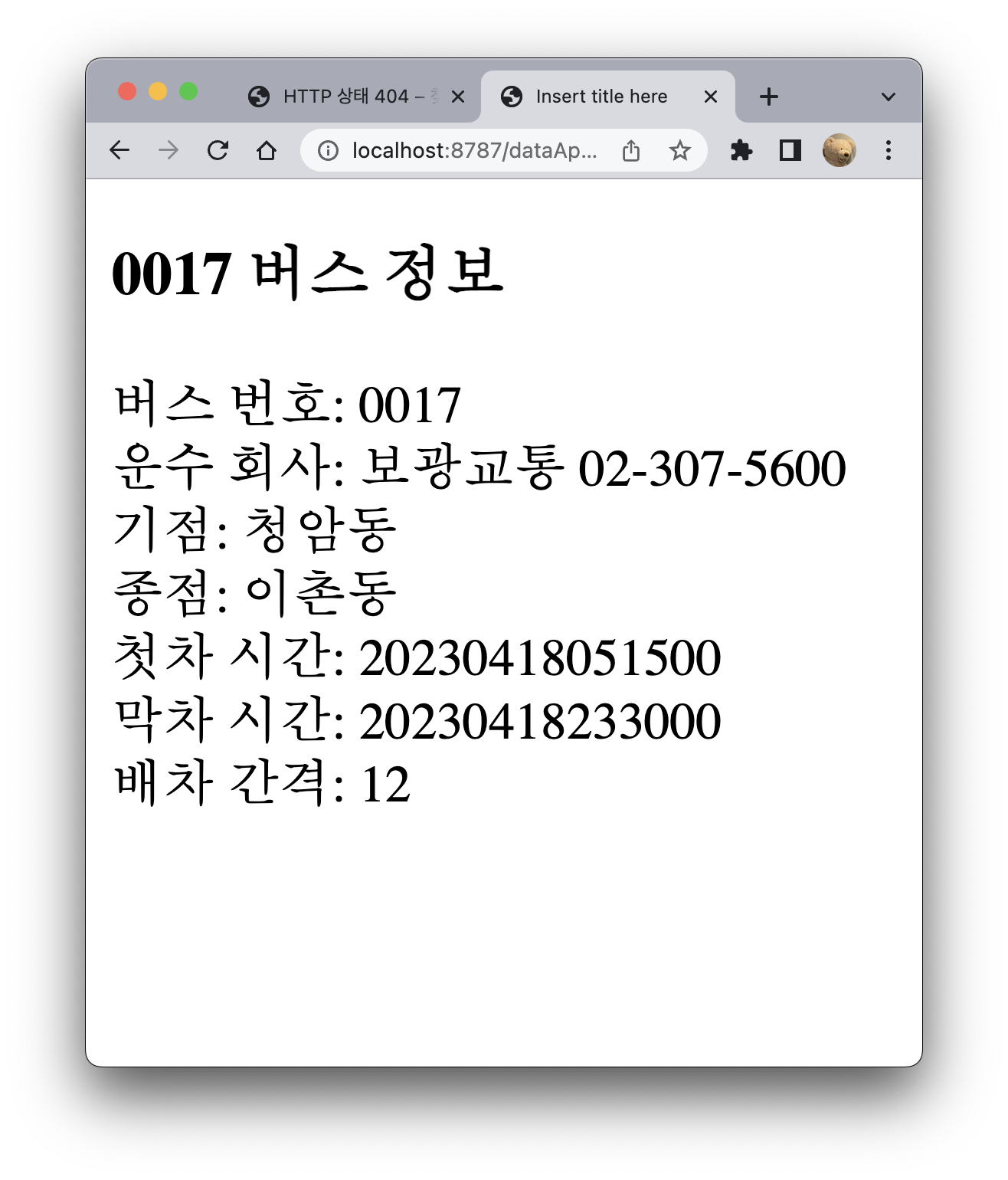

<h3>${busRouteNm} 버스 정보</h3>
버스 번호: ${busRouteNm}<br/>
운수 회사: ${corpNm}<br/>
기점: ${stStationNm}<br/>
종점: ${edStationNm}<br/>
첫차 시간: ${firstBusTm}<br/>
막차 시간: ${lastBusTm}<br/>
배차 간격: ${term}<br/>
</body>
</html>







2-2. Bus 번호 검색 (ex. 3을 포함하는 모든 버스)

<form action="${pageContext.request.contextPath}/bus/getListByName.do" method="POST">
버스 번호: <input type="text" name="busnum">
<input type="submit" value="검색">
</form>

public class BusVo {
	private String busRouteId; // 버스 아이디
	private String busRouteNm; // 버스번호
	private String corpNm; // 운수 회사
	private String stStationNm; // 기점
	private String edStationNm; // 종점
	private String firstBusTm; // 첫차시간
	private String lastBusTm; // 막차시간
	private String term; // 배차간격
}

package handler;

import java.io.IOException;
import java.net.MalformedURLException;
import java.net.URL;
import java.net.URLConnection;
import java.util.ArrayList;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;

import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;

import xml.BusVo;

public class BusIdHandler implements Handler {

	@Override
	public String process(HttpServletRequest request, HttpServletResponse response) {
		String busnum = request.getParameter("busnum");
		String urlstr = "http://ws.bus.go.kr/api/rest/busRouteInfo/getBusRouteList?ServiceKey=복사해둔API값&strSrch="+ busnum;
		URL url;
		try {
			url = new URL(urlstr);
			URLConnection conn = url.openConnection(); // 네트워크 연결
			DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
			// DocumentBuilder 객체 생성
			DocumentBuilder builder = factory.newDocumentBuilder();
			// xml 파싱
			Document doc = builder.parse(conn.getInputStream());

			Element root = doc.getDocumentElement(); // root요소 추출 (최상단 태그)
			String headercode = root.getElementsByTagName("headerCd").item(0).getTextContent();
			if (!headercode.equals("0")) {
				String errormsg = root.getElementsByTagName("headerMsg").item(0).getTextContent();
				response.setContentType("text/html; charset=UTF-8");
				response.getWriter().append(errormsg);
				return null;
			}

			ArrayList<BusVo> list = new ArrayList<>();
			NodeList buslist = root.getElementsByTagName("itemList"); // <itemList> 태그 사이 값을 다 뽑음
			for (int i = 0; i < buslist.getLength(); i++) {
				Element bus = (Element) buslist.item(i);
				String busRouteId = bus.getElementsByTagName("busRouteId").item(0).getTextContent();
				String busRouteNm = bus.getElementsByTagName("busRouteNm").item(0).getTextContent();
				String corpNm = bus.getElementsByTagName("corpNm").item(0).getTextContent();
				String edStationNm = bus.getElementsByTagName("edStationNm").item(0).getTextContent();
				String stStationNm = bus.getElementsByTagName("stStationNm").item(0).getTextContent();
				String firstBusTm = bus.getElementsByTagName("firstBusTm").item(0).getTextContent();
				String lastBusTm = bus.getElementsByTagName("lastBusTm").item(0).getTextContent();
				String term = bus.getElementsByTagName("term").item(0).getTextContent();
				list.add(new BusVo(busRouteId, busRouteNm, corpNm, edStationNm, stStationNm, firstBusTm, lastBusTm, term));
			}
			request.setAttribute("list", list);
			System.out.println(list);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ParserConfigurationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (SAXException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

		return "/bus/busIdList.jsp";
	}

}

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>

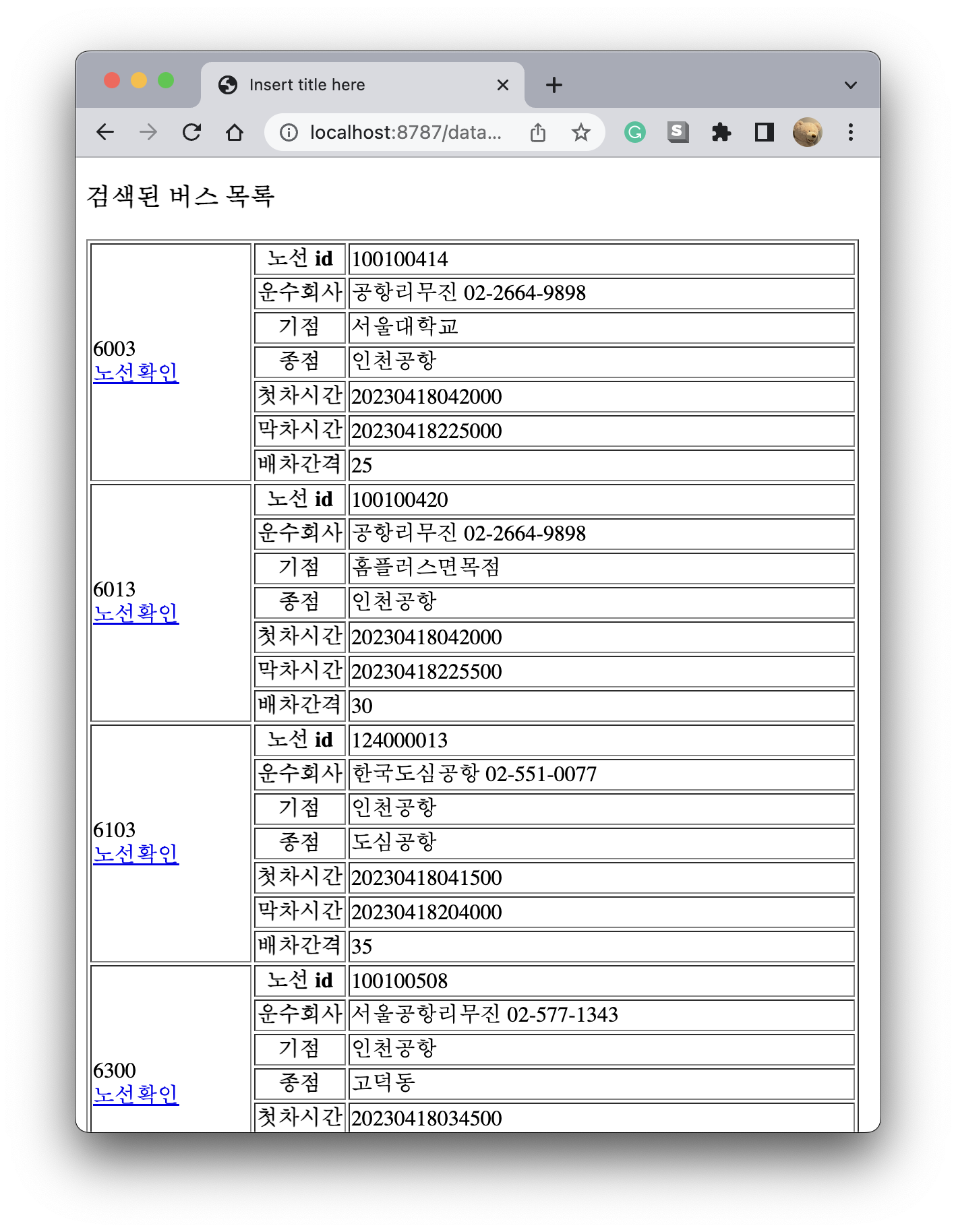

<h3>검색된 버스 목록</h3>
<table border="1">
<c:forEach var="vo" items="${list}">
	<tr><td rowspan="7">${vo.busRouteNm}<br/>
		<a href="${pageContext.request.contextPath}/bus/stationlist.do?busid=${vo.busRouteId}">노선확인</a>
	<th>노선 id</th><td>${vo.busRouteId}</td></tr>
	<tr><th>운수회사</th><td>${vo.corpNm}</td></tr>
	<tr><th>기점</th><td>${vo.stStationNm}</td></tr>
	<tr><th>종점</th><td>${vo.edStationNm}</td></tr>
	<tr><th>첫차시간</th><td>${vo.firstBusTm}</td></tr>
	<tr><th>막차시간</th><td>${vo.lastBusTm}</td></tr>
	<tr><th>배차간격</th><td>${vo.term}</td></tr>
</c:forEach>
</table>
</body>
</html>





2-3. Bus 노선 확인





public class StationVo {
	private String seq; // 순번
	private String stationNm; // 정류소 이름
	private String direction; // 진행방향
	private String gpsX;
	private String gpsY;
	private String arsId; // 정류소 고유 번호
}

package handler;

import java.io.IOException;
import java.net.MalformedURLException;
import java.net.URL;
import java.net.URLConnection;
import java.util.ArrayList;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;

import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;

import xml.BusVo;
import xml.StationVo;

public class BusStationHandler implements Handler {

	@Override
	public String process(HttpServletRequest request, HttpServletResponse response) {
		String busid = request.getParameter("busid");
		String urlstr = "http://ws.bus.go.kr/api/rest/busRouteInfo/getStaionByRoute?ServiceKey=복사해둔API값&busRouteId=";
		urlstr += busid;
		try {
			URL url = new URL(urlstr);
			URLConnection conn = url.openConnection(); // 네트워크 연결
			DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
			DocumentBuilder builder = factory.newDocumentBuilder();  // DocumentBuilder 객체 생성
			Document doc = builder.parse(conn.getInputStream());  // xml 파싱

			Element root = doc.getDocumentElement(); // root요소 추출 (최상단 태그)
			String headercode = root.getElementsByTagName("headerCd").item(0).getTextContent();
			if (!headercode.equals("0")) {
				String errormsg = root.getElementsByTagName("headerMsg").item(0).getTextContent();
				response.setContentType("text/html; charset=UTF-8");
				response.getWriter().append(errormsg);
				return null;
			}

			ArrayList<StationVo> list = new ArrayList<>();
			NodeList stationlist = root.getElementsByTagName("itemList"); // <itemList> 태그 사이 값을 다 뽑음
			String busRouteNm = "";
			for (int i = 0; i < stationlist.getLength(); i++) {
				Element station = (Element) stationlist.item(i);
				if(i==0) { // 가장 처음에만 버스 번호 받고 그 이후엔 받지 말기~
					busRouteNm = station.getElementsByTagName("busRouteNm").item(0).getTextContent();
				}
				String seq = station.getElementsByTagName("seq").item(0).getTextContent();
				String stationNm = station.getElementsByTagName("stationNm").item(0).getTextContent();
				String direction = station.getElementsByTagName("direction").item(0).getTextContent();
				String gpsX = station.getElementsByTagName("gpsX").item(0).getTextContent();
				String gpsY = station.getElementsByTagName("gpsY").item(0).getTextContent();
				String arsId = station.getElementsByTagName("arsId").item(0).getTextContent();
				list.add(new StationVo(seq, stationNm, direction, gpsX, gpsY, arsId));
			}
			request.setAttribute("busRouteNm", busRouteNm);
			request.setAttribute("list", list);

		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ParserConfigurationException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (SAXException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

		return "/bus/stationList.jsp";
	}

}

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<h3>${busRouteNm }의 노선 경유 목록</h3>
<table border="1">
<tr><th>순번</th><th>정거장명</th><th>방향</th><th>X좌표</th><th>Y좌표</th><th>고유번호</th></tr>
<c:forEach var="vo" items="${list}">
<tr><td>${vo.seq}</td><td>${vo.stationNm}</td><td>${vo.direction}</td><td>${vo.gpsX}</td><td>${vo.gpsY}</td><td>${vo.arsId}</td></tr>
</c:forEach>
</table>
</body>
</html>
